Features

Ø Long wavelength operation Suitable for long wavelength

from 25Gbps applications.3.3V low-voltage operation

Ø Package:TO-46

Ø Differential output

Ø Excellent reliability, meeting EU RoHS requirements

Ø Single power supply +3.3V

Applications

Ø 10/25/100 Gb Ethernet

Ø InfiniBand EDR

Ø OTU-4

Ø SFP28, CFP2/4 and QSFP28 Modules

Description

Ø The product integrates a high speed Photodiode PIN and TIA with AGC.

Regulatory Compliance

Feature

Standard

Performance

Electrostatic Discharge（ESD）

MIL-STD-883E  Method 3015.7

Class 1（>300V）

Isolation with the case

Green Product

——



Absolute Maximum Ratings

Parameter

Symbol

Min.

Max.

Unit

Storage Temperature

Tstg

-65

+150

℃

Soldering Temperature

Stemp

-

260/2

℃/s

Note：Stresses in excess of the Absolute Maximum Rating can cause permanent damage to the device.



Recommended Operating Conditions

Parameter

symbol

Min.

Typ.

Max.

Unit

Operating Temperature

Top

-40

+25

+85

℃

TIA Operating Voltage

Vcc

-0.4

3.3

4.0

V



Opto – Electrical Characteristic

Parameter

Symbol

Test Conditions

Min.

Typ.

Max.

Unit

Optical Wavelength

λop

——

910

1310

1650

nm

Supply Current

Icc

——

-

26

33

mA

Power supply

Vcc

——

2.97

3.3

3.63

V

Dark current

Id

Vr


0.3

3.0

nA

Bandwidth

BW

-3dB electrical below AGC

turn-on, linear gain region

-

21

-

GHz

Sensitivity

Sen

BER=10-12,PRBS=231-1, ER=5dB, 10Gbps,l=1310nm

-

-13.5

-

dBm

Responsivity

R

l=1310nm

0.7

0.92

-

A/W

Output Loading

Rload

Recommended differential output loading

-

100

-

Ω

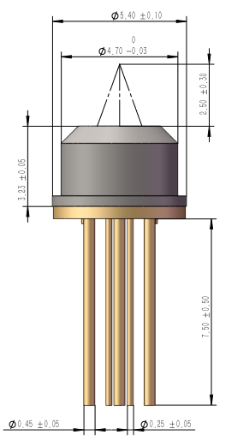

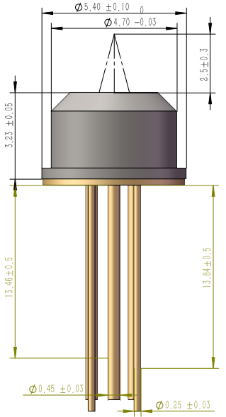

Package Information



A型                                       B型

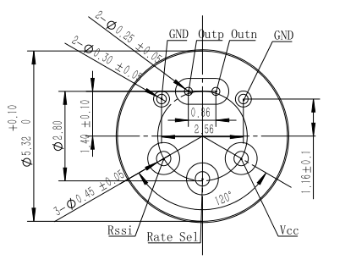

Pin Definition





               5PIN                               7PIN

Ordering Information

MYGD

-

Description

PD Type

TIA Voltage

Bandwidth

-

Package

-

Mode

-

Special

MY

-

RX

0:PIN PD

3:3.3v

0:No

-

2:2PIN

-

No

-


-

1:PIN+TIA

5:5v

2:68MHZ

-

3:3PIN

-

01:VPD

-


-

2:APD+TIA


3:155MHZ

-

4:4PIN

-

02:MON(sinking)

-


-

3:850PIN+TIA


4:622MHZ

-

5:5PIN

-

03:MON(sourcing)

-


-

4:MINI PIN


5:1.25G

-

6:6PIN

-

04:RSSI

-


-

5:MINI PIN+TIA


6:2.5G

-

7:7PIN

-


-


-

6:PIN APD


7:3.125G


8:8PIN








8:10G







-



9:25G
